OSLON SSL 80° COLOR - 3030

Product Code

Binning current

Max Driving Current

Wavelenght

Typ. Flux @ 85°C

Typ. Efficacy @binning current

Typ. Forward voltage

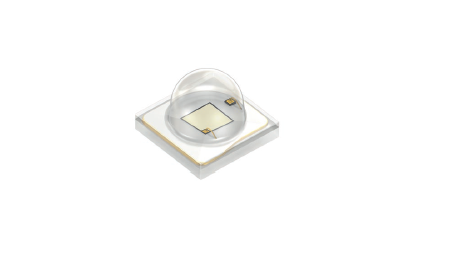

GB CS8PM1.13-BLUE

350 mA

1000 mA

465 nm

43 lm

43 lm/W

2.85 V

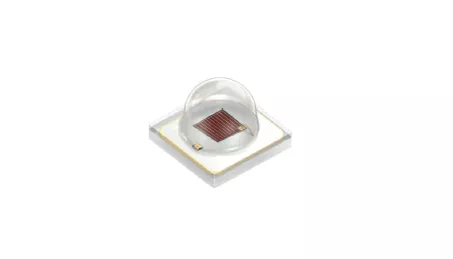

GR CS8PM1.23-RED

350 mA

1000 mA

634 nm

70 lm

95 lm/W

2.10 V

GT CS8PM1.13-GREEN

350 mA

1000 mA

521 nm

148 lm

157 lm/W

2.70 V

GY CS8PM1.23-YELLOW

350 mA

1000 mA

593 nm

76 lm

99 lm/W

2.20 V
