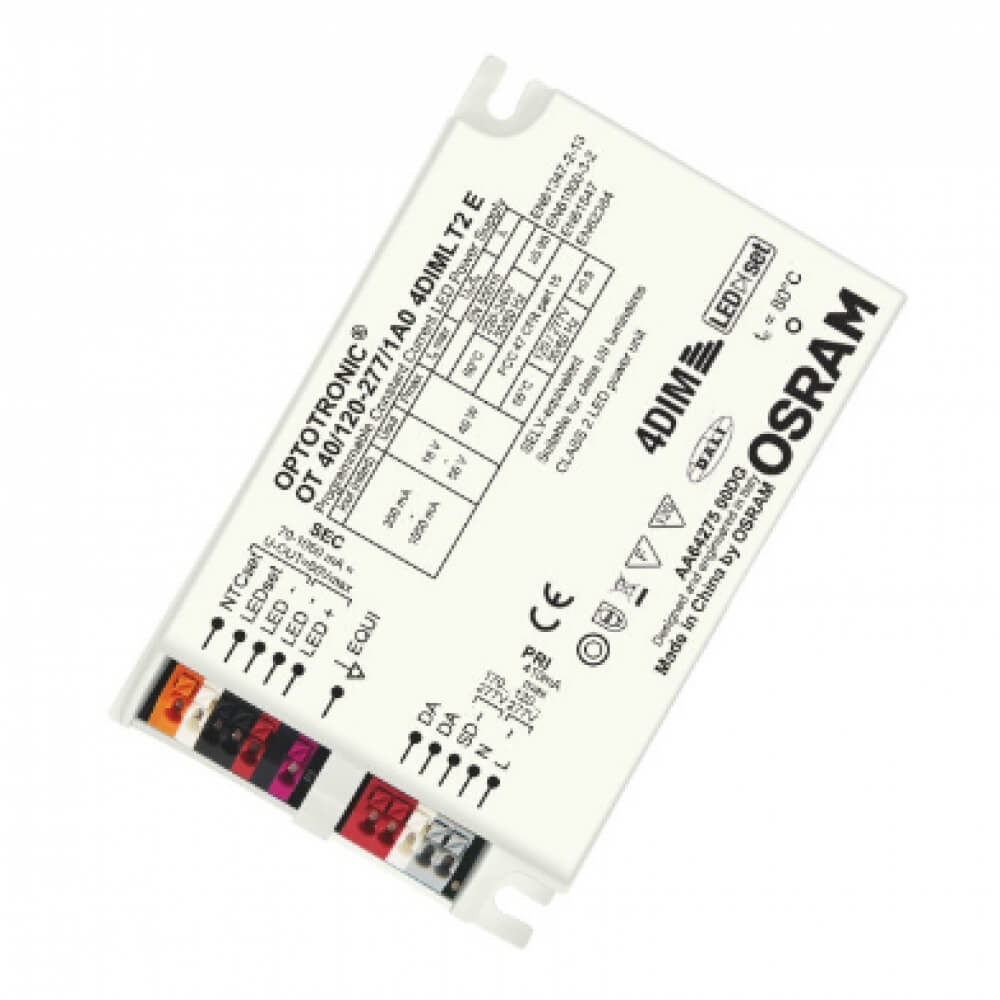

OT 40/120…277/1050 4DIMLT2 E
Manufacturer : OSRAM DS
Category : Constant Current/Outdoor/Dimmable
Category : Constant Current/Outdoor/Dimmable
Product features
IP54 and above, suitable for street, park & garden lighting, incorporating 4 different dim features in a single device (Astro Dim, Step Dim, Phase Dim, Dali Dim), high lightning protection (up to 10kV (1pulse) / 8kV and 350mA- It has adjustable current features between 1050mA.
Click for detailed information about Astro Dim and Other 4DIM Features.
It is suitable for mounting inside Class I or II luminaires.
It is guaranteed for 5 years.
Output Current: The current can be adjusted between 350mA-1050mA.
Output Voltage: 18-56Vdc
Power Factor: >0,95Efficiency: 88,5THD: <10Ripple: 25
Protection Class: IP20
Dimensions:
L:123mm | W:79mm | H:33mm |
