OTI DALI 24V Tunable White Driver
Manufacturer : OSRAM DS
Category : Constant Voltage/Indoor/Dimmable
Linear type constant voltage drivers with DALI feature, 2 and 4 channel models. Color temperature can be adjusted with the tunable white feature. It is ideal for lighting applications such as concealed lighting, corridor lighting and wall washer.
It can be dimmed in the range of -0…100%.
– Suitable for Class I and II luminaires.
It is guaranteed for 5 years.
Product features
| Product code | Name of the product | Output Power | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899490772 | OTI DALI 50/220-240/24 TW | 0 – 50 | 24 | 0,98 | 92 | <5 | <5 | IP 20 | 345 | 32 | 22 |

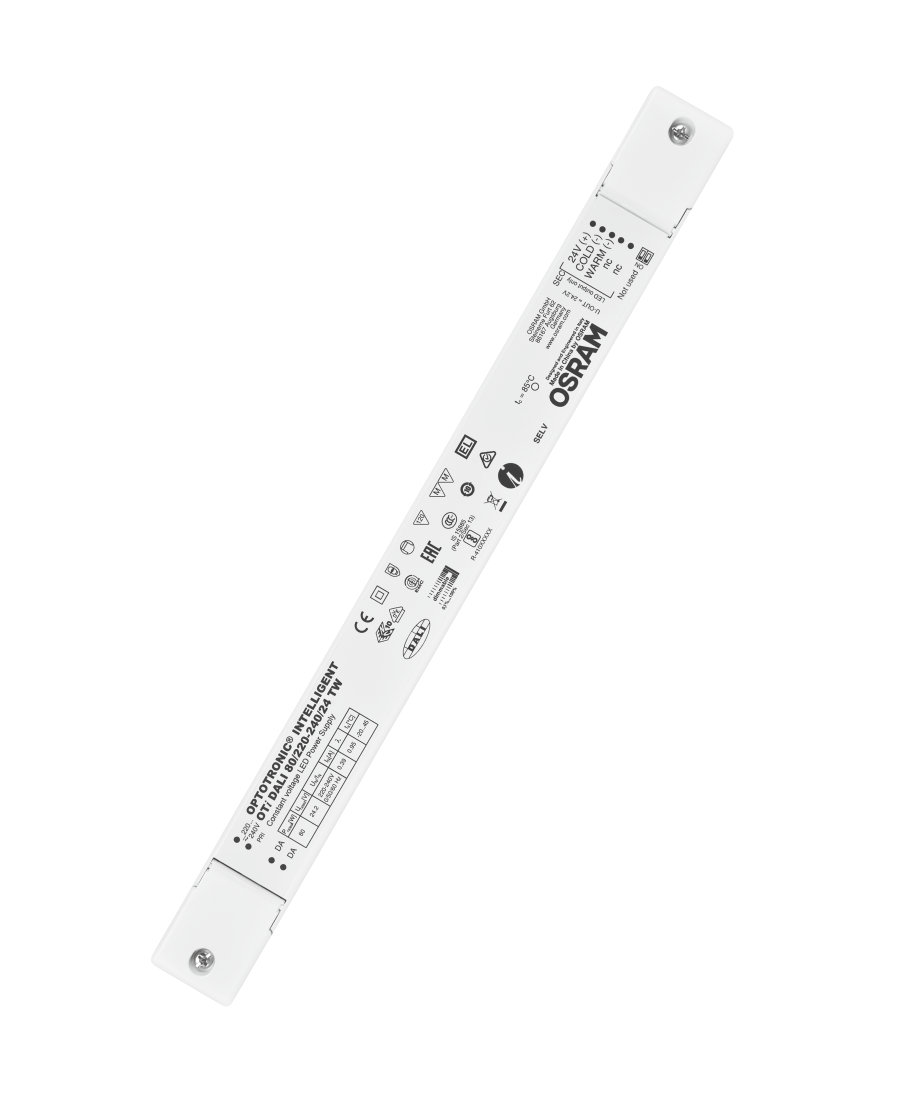

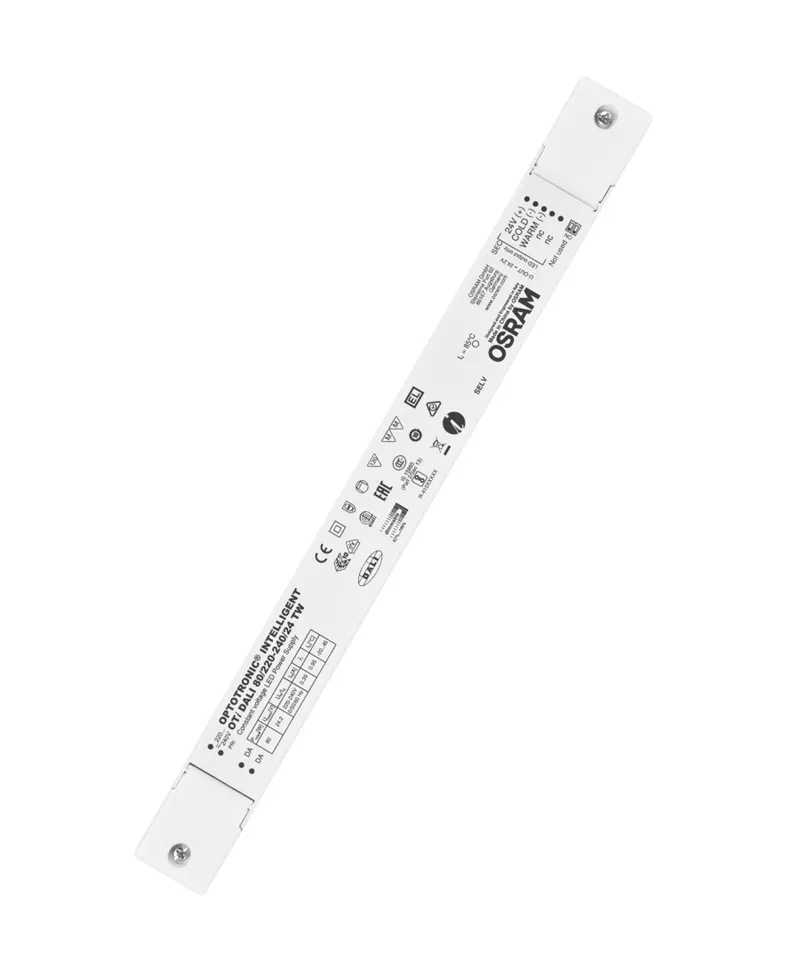

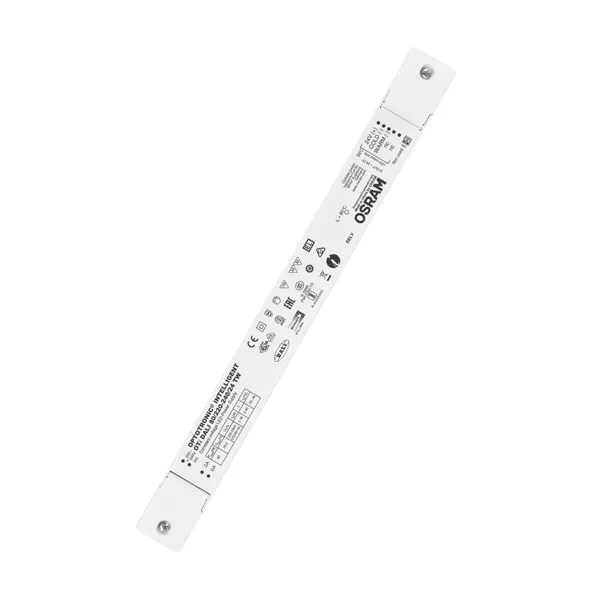

| 4052899490758 | OTI DALI 80/220-240/24 TW | 0 – 80 | 24 | 0,98 | 93 | <5 | <5 | IP 20 | 345 | 32 | 22 |

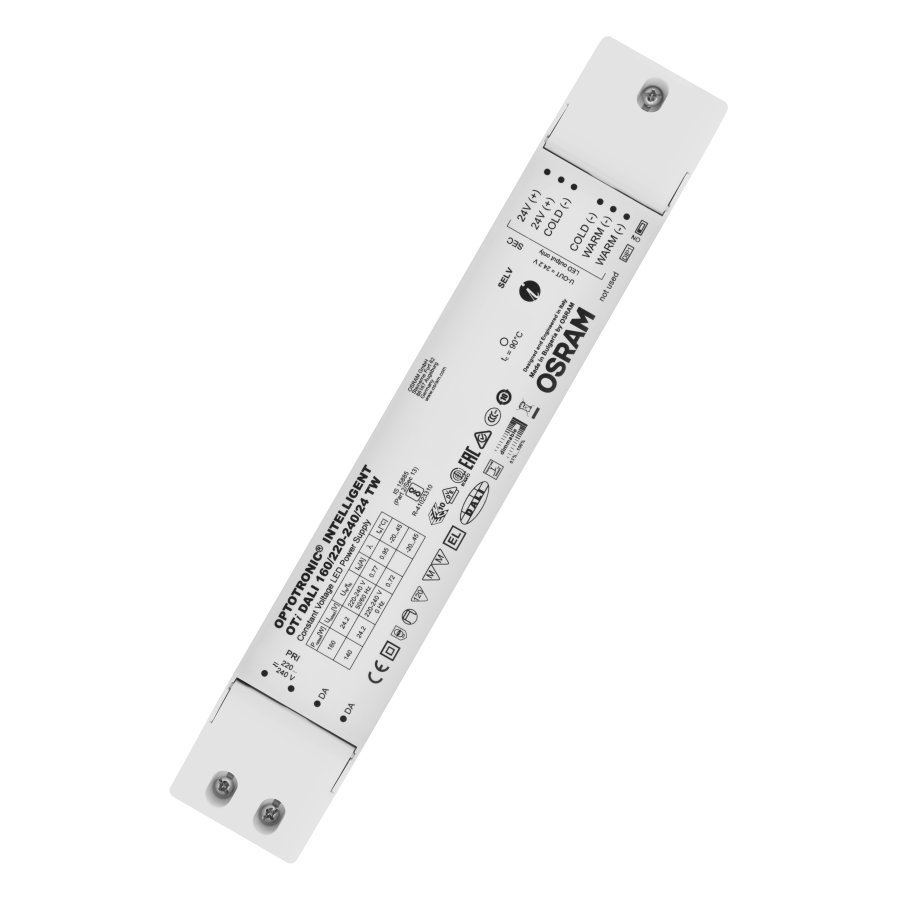

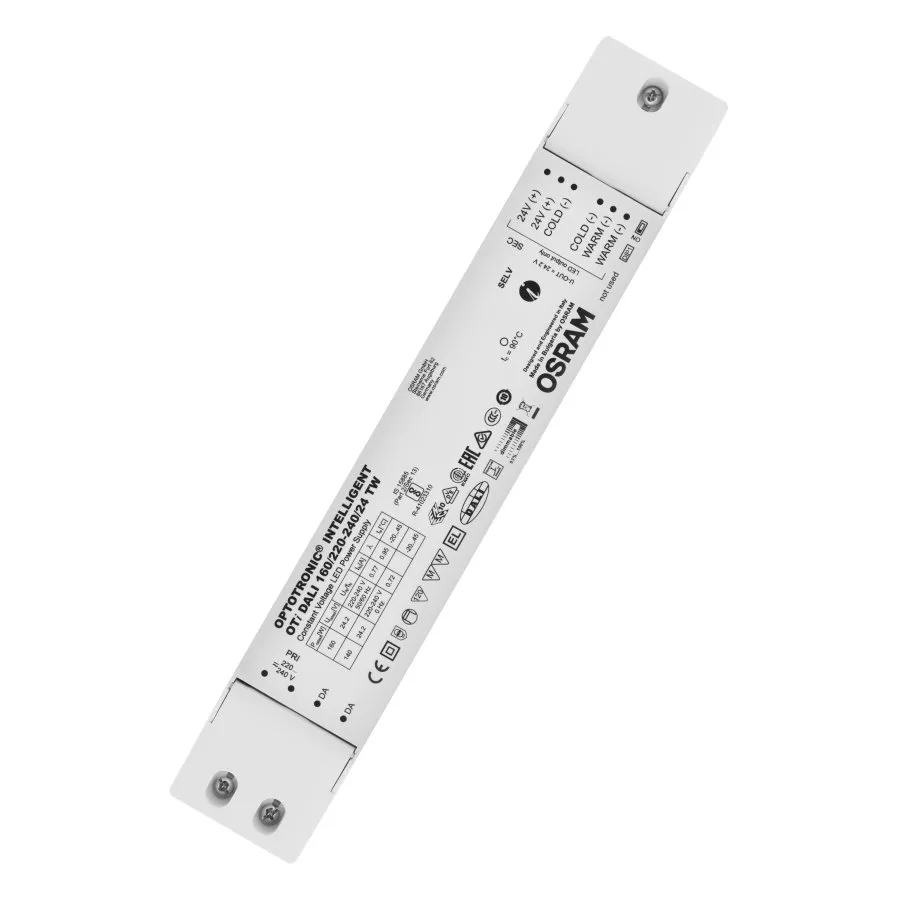

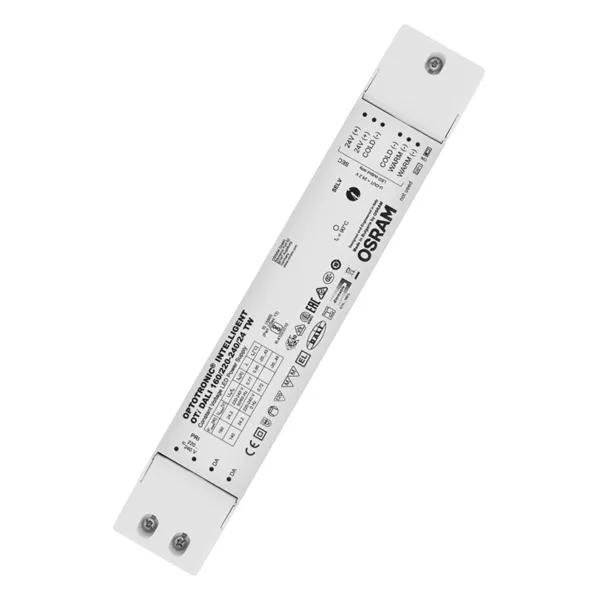

| 4052899986312 | OTI DALI 160/220-240/24 TW | 0 – 160 | 24 | 0,99 | 93 | <5 | <5 | IP 20 | 300 | 50 | 35 |
