OTi DALI Compact NFC PMD (SELV)- 2020 NEW SERIES
Manufacturer : OSRAM DS
Category : Constant Current Compact/Indoor/Dimmable
It is suitable for all interior lighting applications such as office lighting, shop lighting, spot lighting, downlight, with high reliability, efficiency and DALI feature in a compact case. Thanks to the PMD feature, power, energy, working time etc. provides analytical data.
Compatible with Class I and Class II Luminaires.
It is guaranteed for 5 years.
Product features
| Product code | Name of the product | Output Power | Output Current Range | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |

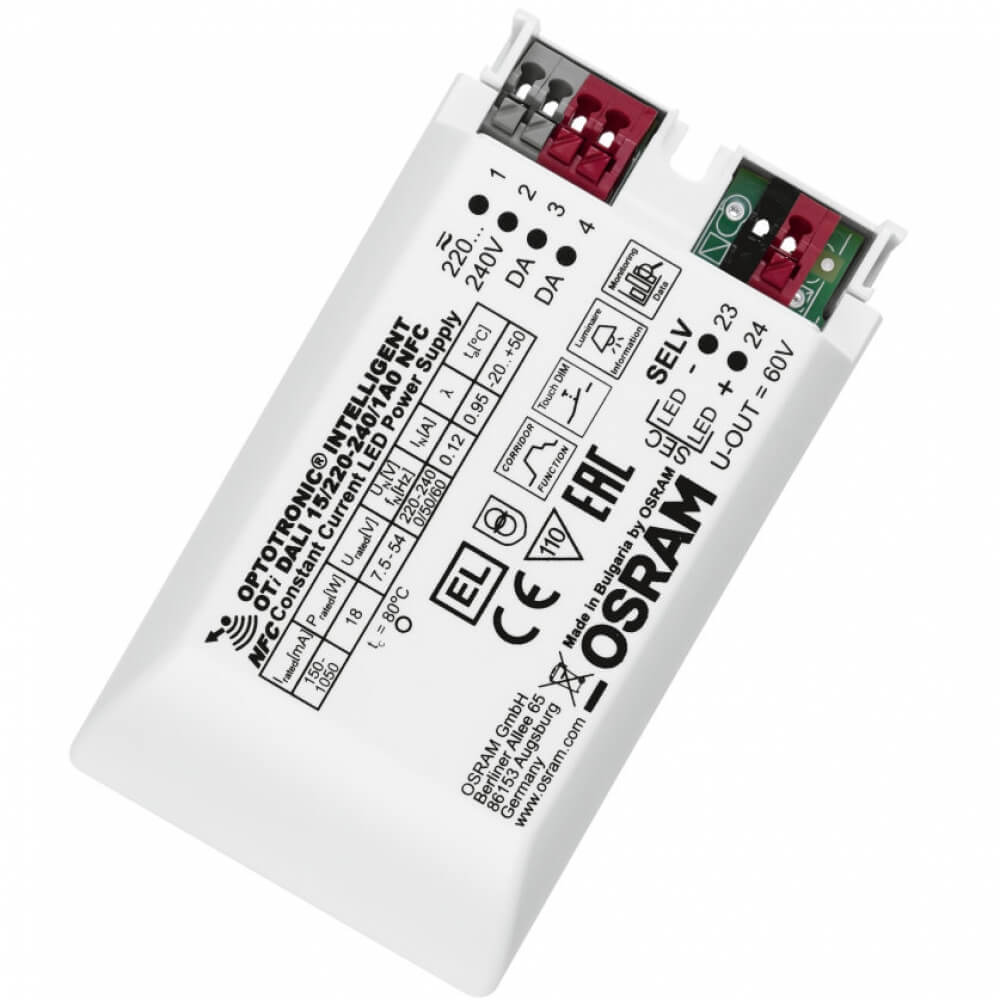

| 4062172061766 | OTI DALI 15/220-240/1A0 NFC | 3 – 18W | 150 – 1050 mA | 7,5 – 54Vdc | 0,95 | 88 | <10 | <2 | IP 20 | 95 | 53 | 30 |
| 4062172017909 | OTI DALI 25/220-240/700 NFC | 7 – 27W | 180 – 700 mA | 15 – 50Vdc | >0,98 | 88 | <10 | <3 | IP 20 | 103 | 67 | 29,5 |
| 4062172017923 | OTI DALI 35/220-240/1A0 NFC | 14 – 35W | 350 – 1050 mA | 15 – 50Vdc | >0,98 | 90 | <10 | <3 | IP 20 | 103 | 67 | 29,5 |
| 4062172061889 | OTI DALI 50/220-240/1A4 NFC | 22 – 55W | 600 – 1400 mA | 15 – 54Vdc | 0,95 | 91 | <10 | <3 | IP 20 | 110 | 75 | 25 |
