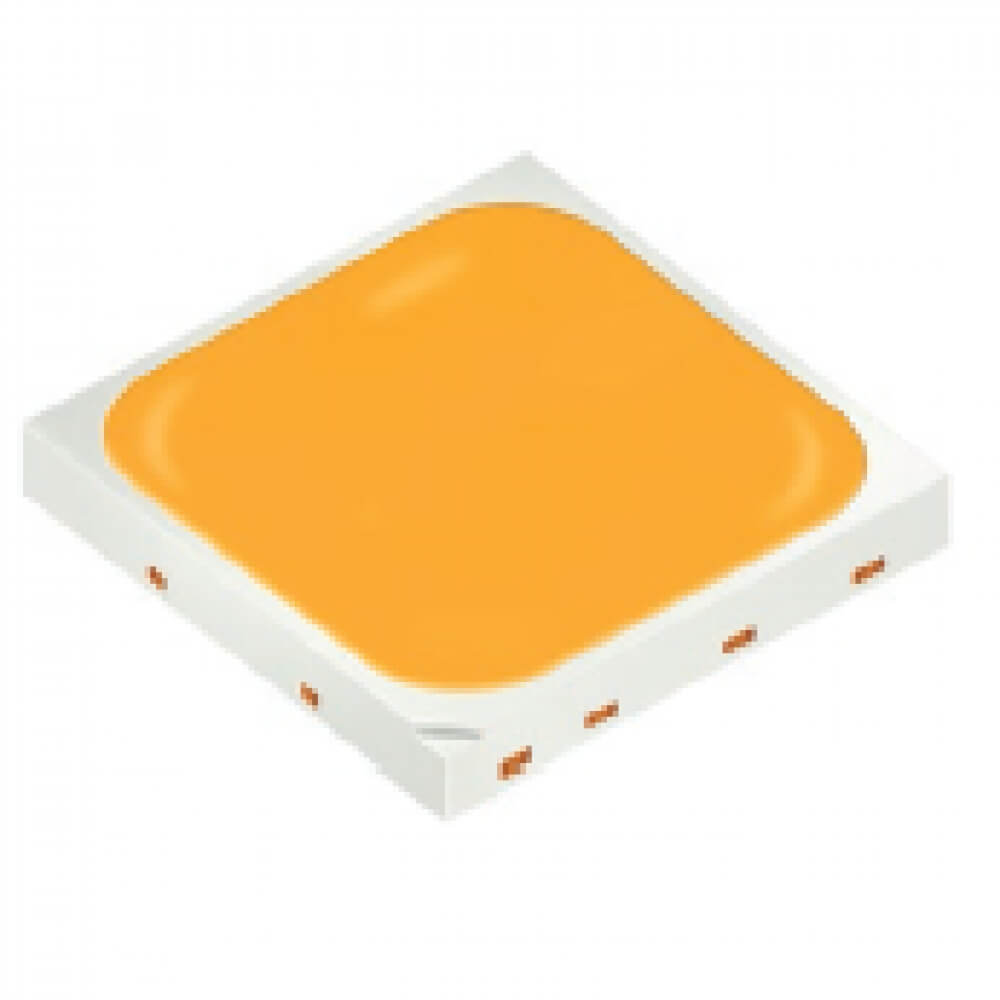

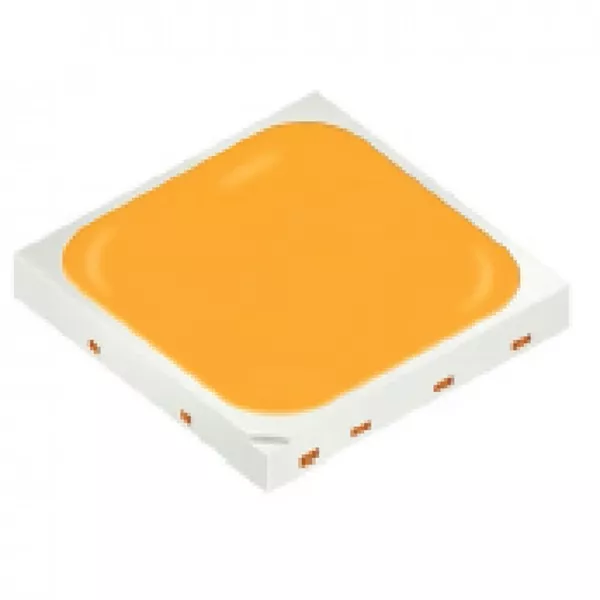

DURİS S8-5050
Manufacturer : OSRAM Opto Semiconductors
Category : Mid Power LED
Application Areas: High Ceiling -Street -Tunnel-External Lighting
Package Size : 5.0mm x 5.0mm
Color Temperatures(CCT) : 2200 K – 6500 K (white)
Reports : LM-80 and Eye Health Test reports
Product features
Product Code | Binning current | Max Driving Current | Typ. Flux @ 25°C | Typ. Forward voltage | Typ. Efficacy @binning current | CCT Range | CRI |
GW P9LR33.CM | 150mA | 200mA | 390 lm | 24,8 V | 105 lm/W @ 3000 K | 2700 K – 6500K | 82(typ) |
GW P9LR34.PM | 45mA | 200mA | 207 lm | 22,2 V | 207lm/W @4000 K | 2200-6500K | 72(typ) |
GW P9LR35.EM | 180mA | 800mA | 184lm | 5,55 V | 184lm/W @3000K | 2200-6500K | 82(typ) |
GW P9LR34.EM | 45mA | 200mA | 184lm | 22,2 V | 184lm/W @3000K | 2200-6500K | 82(typ) |
