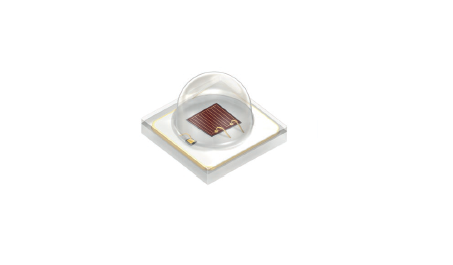

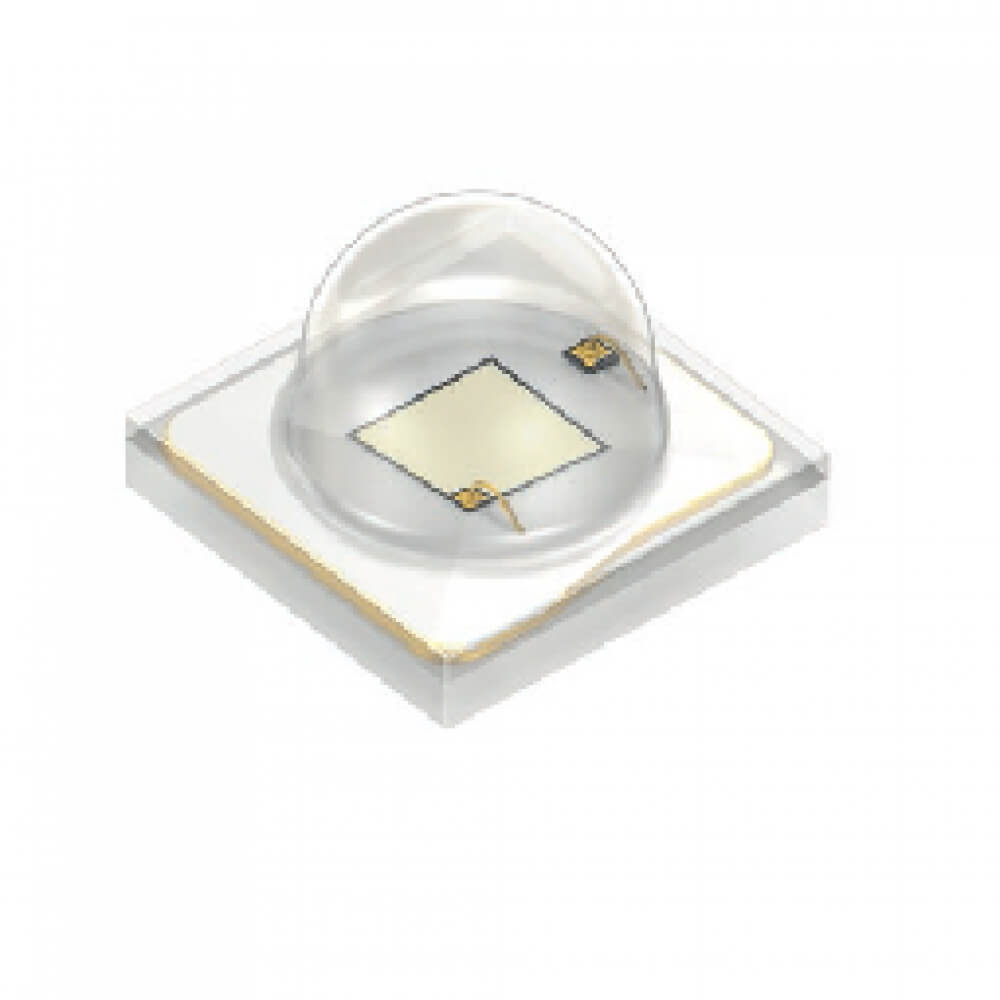

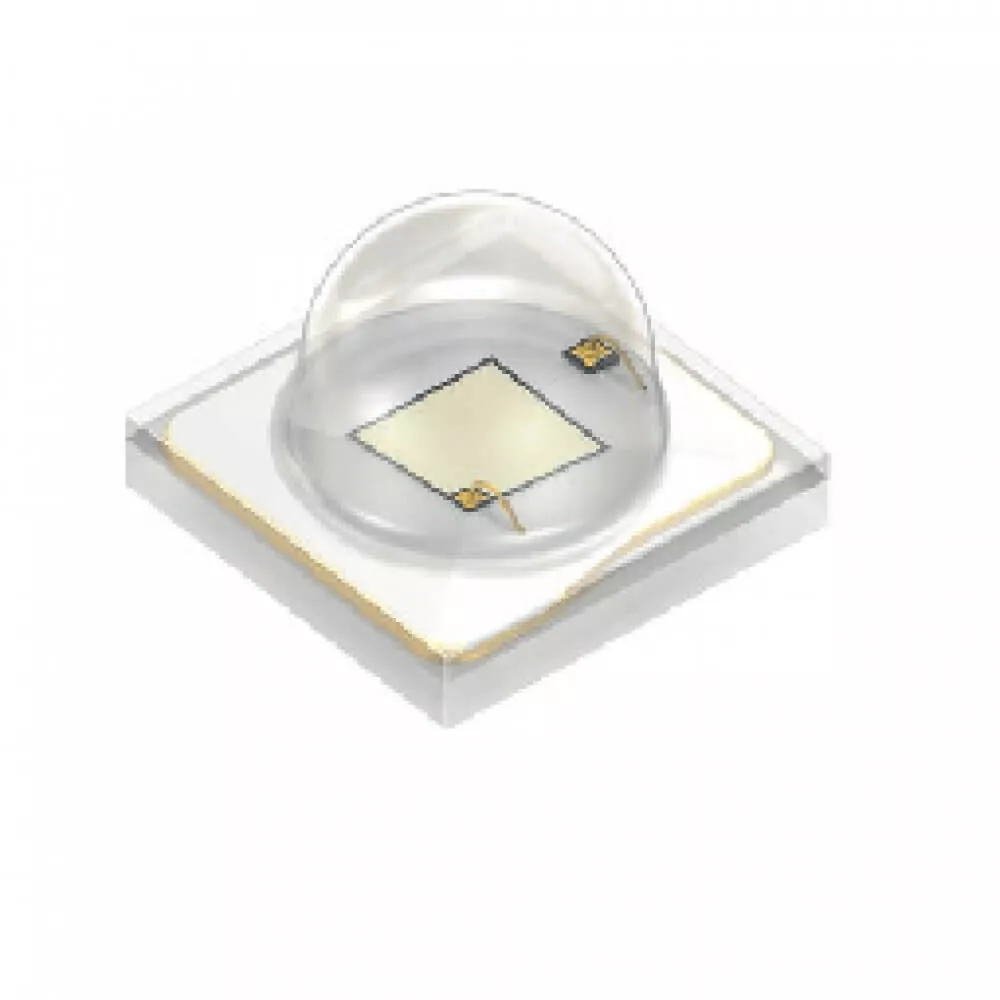

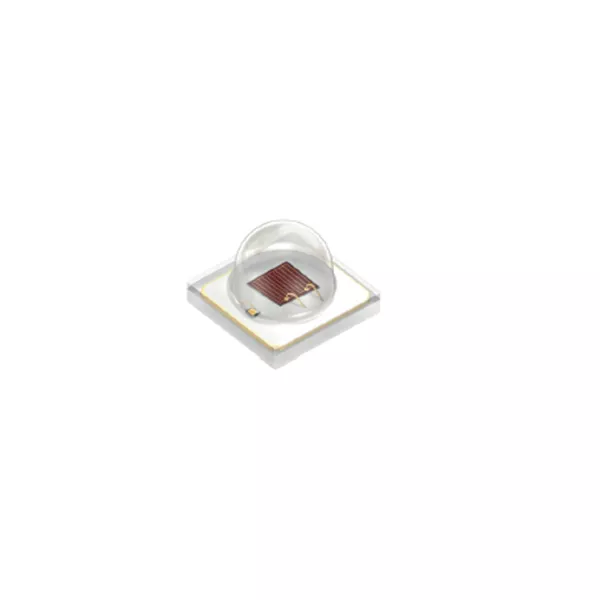

OSLON SSL 80° Horticulture - 3030

Manufacturer : OSRAM Opto Semiconductors
Category : Greenhouse Lighting

Application Areas: Greenhouse Lighting
Package Size: 3.0mm x 3.0mm
Color Temperatures (CCT): Blue, Red
Reports: LM-80 and Eye Health Test reports

Product features

Product Code

Binning current

Max Driving Current

Wavelenght

Typ. Flux @ 85°C

Typ. Efficacy @binning current

Typ. Forward voltage

GD CS8PM1.14-DEEPBLUE

350 mA

1000 mA

451 nm

712 Mw

0,71

2.85 V

GF CS8PM2.24-FAR RED

350 mA

1000 mA

730 nm

365 mW

typ. 56 %

1.85 V

GH CS8PM1.24-HYPER RED

350 mA

1000 mA

660 nm

425 mW

typ. 59 %

2.07 V
