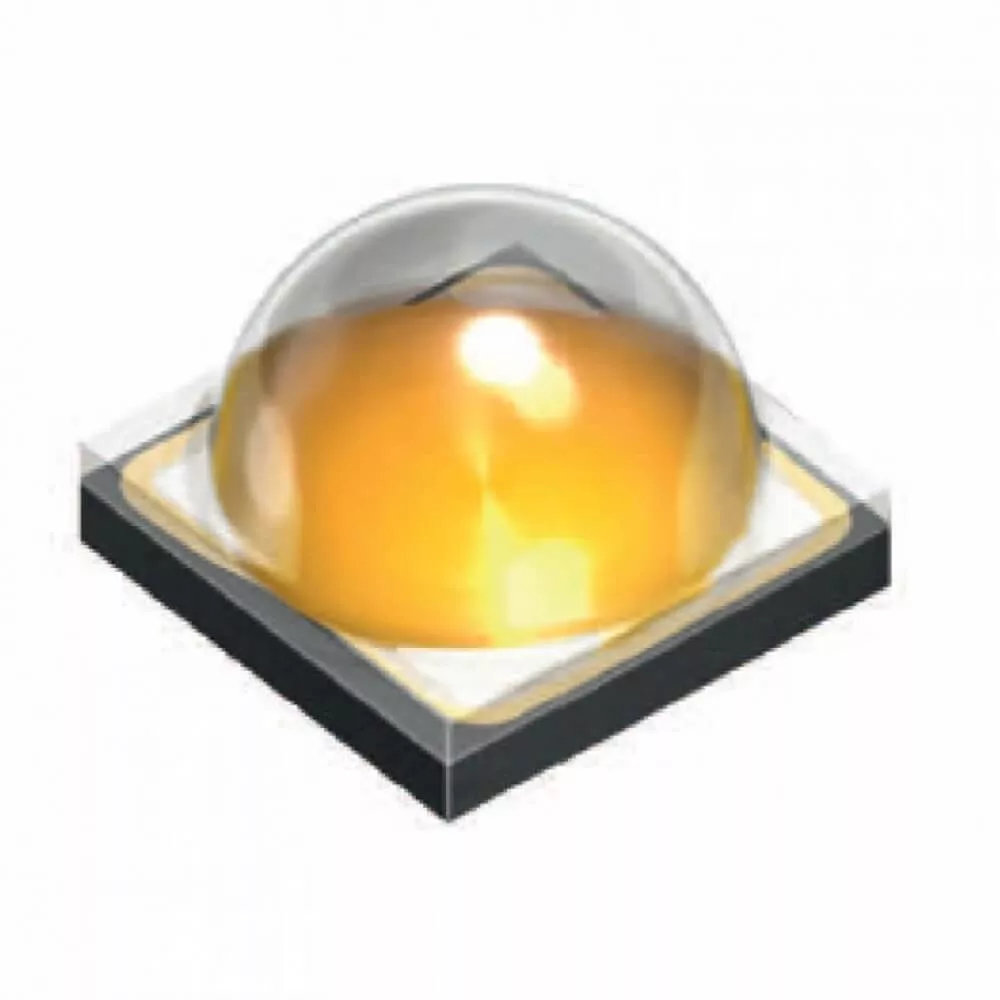

OSLON SSL 80°

Manufacturer : OSRAM Opto Semiconductors
Category : High Power LED

Application Areas: Road/Street lighting, Park/Garden lighting, High ceiling luminaires, Industrial Lighting and Other Outdoor lighting areas

Package Size: 3.0mm x 3.0mm

Color Temperatures(CCT): 3000K, 3500K, 4000K, 5000K, 5700K, 6500K

Reports: LM-80 and Eye Health Test reports

Ürün Özellikleri
Product Code Binning currentMax Driving Current Typ. Flux @ 85°C Typ. Forward
voltage		Typ. Efficacy @binning currentCCT RangeCRI
GW CS8PM1.EM350 mA1300 mA117 lm2.85 V 117 lm/W @ 3000 K2500 –5000 Kmin. 80
GW CS8PM1.PM350 mA1300 mA144 lm2.85 V144 lm/W @ 5000 K3000 –6500 Kmin. 70
GW CS8PM1.CM350 mA1300 mA103 lm2.85 V  103 lm/W @ 3000 K2700 –4000 Kmin. 90
