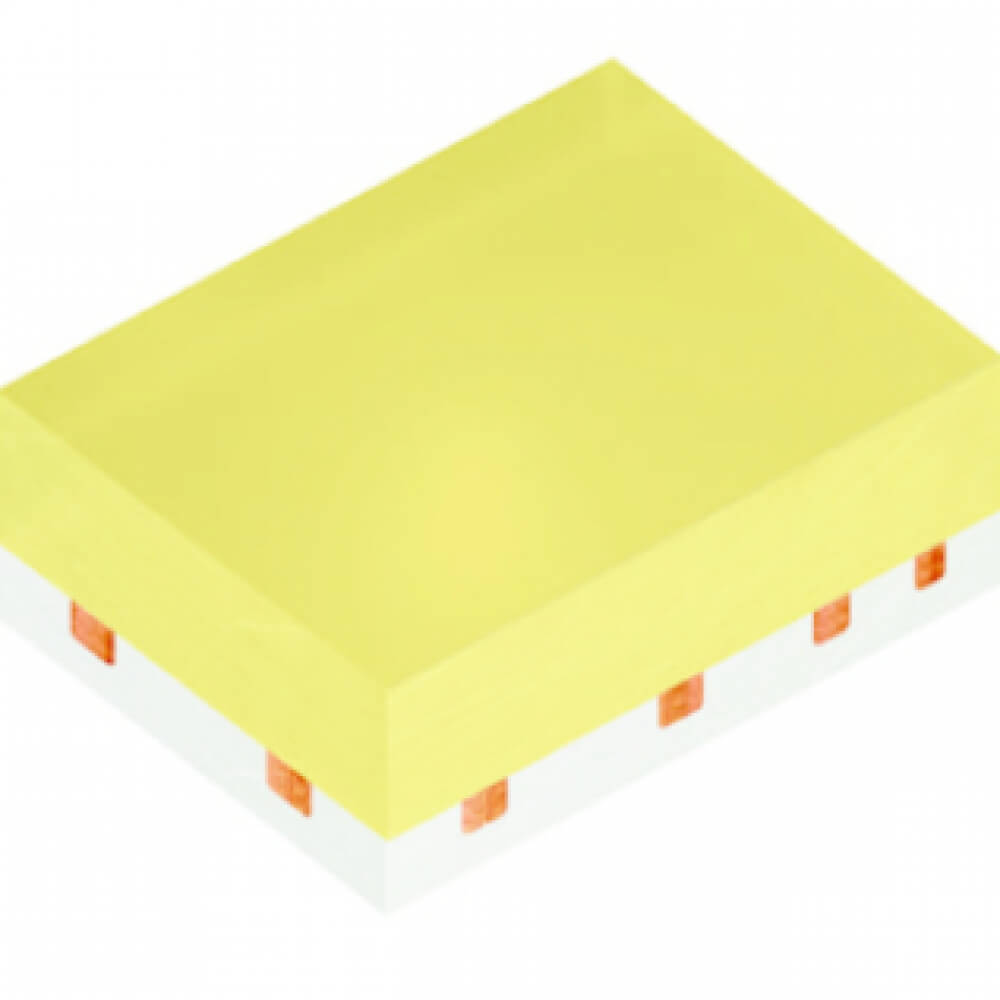

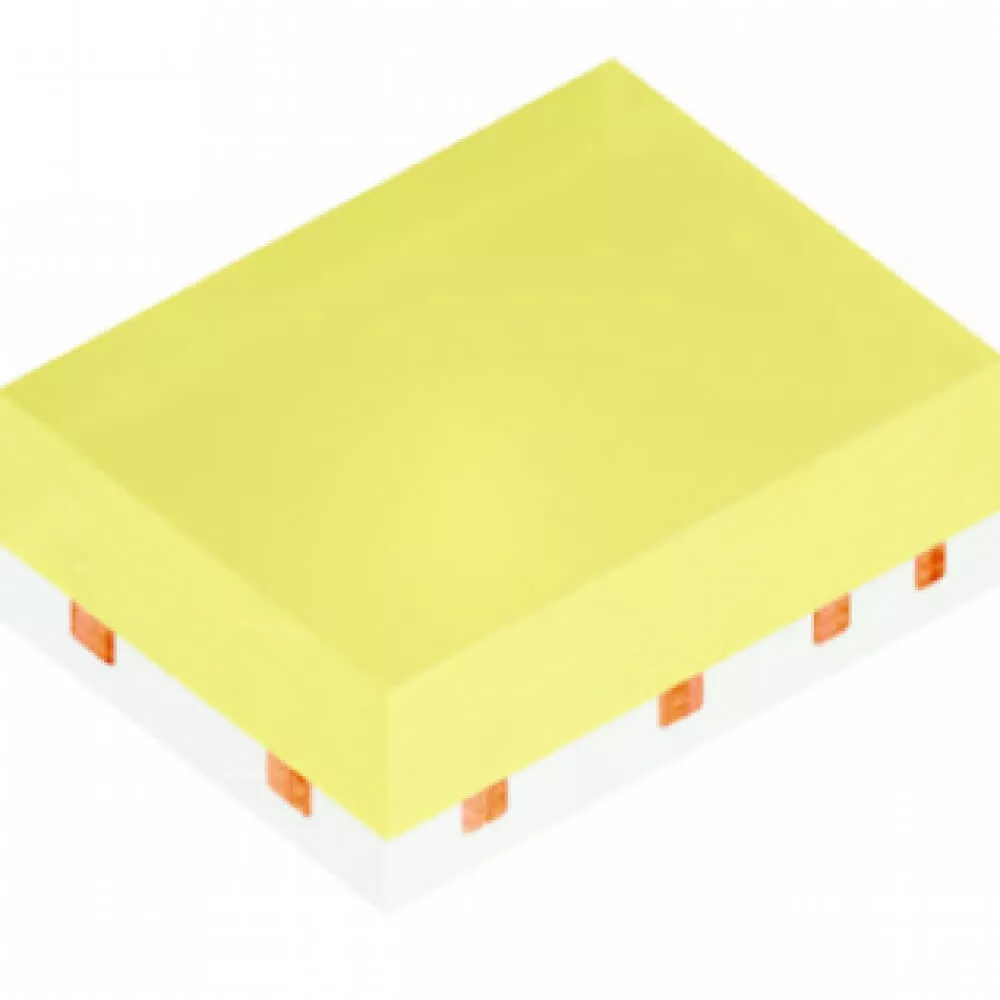

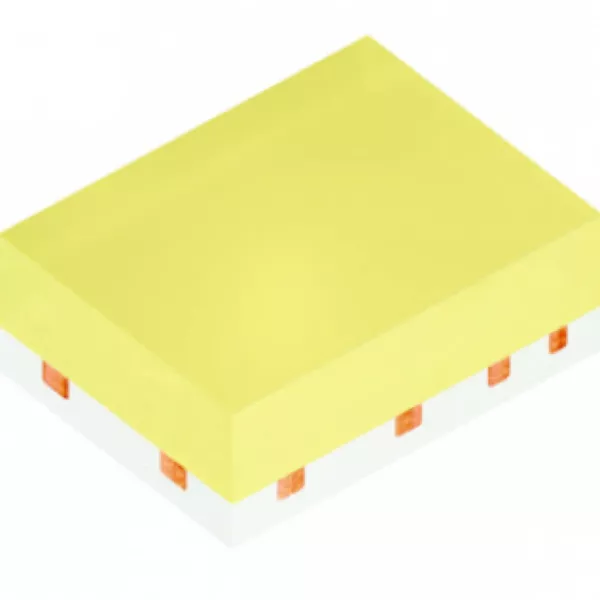

DURIS S2
Manufacturer : OSRAM Opto Semiconductors
Category : Mid Power LED
Category : Mid Power LED
Application Areas: Linear Lighting, Downlight, Panel lighting and Other interior lighting applications

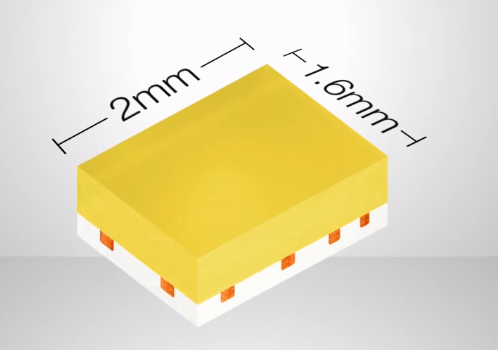

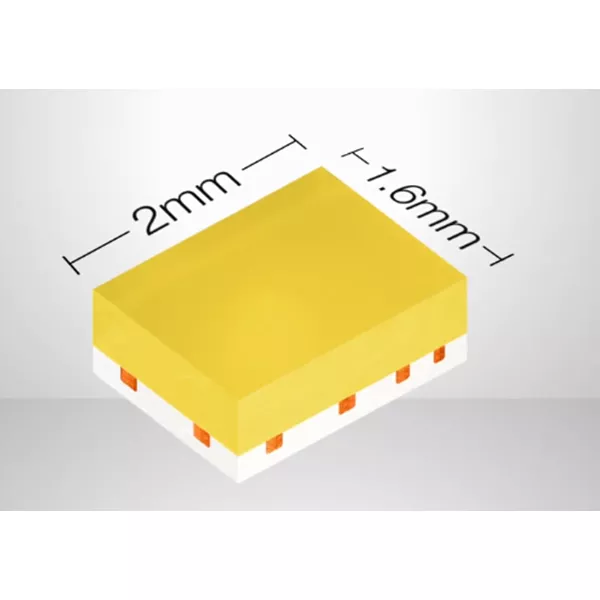

Package Size: 2.0mm x 1.6mm
Color Temperatures(CCT): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: 85 (typ.), 80 (min.)
Luminous Flux: 30 lm @ 5000 K
Viewing Angle: 150°
Reports: LM-80 and Eye Health Test reports
Product Specs
Product code | Current (typ.) | Current (max.) | Luminous flux (typ.) 25°C | Voltage | Efficiency (typ.) @ typ current | CCT range | CRI |
GW SBLMA1.EM | 65 mA | 150 mA | 30 lm | 2.9 V | 159 lm/W @ 5000 K | 2700 –6500K | 85(typ.) |
