Element 24V Gen2 Driver
Manufacturer : OSRAM DS
Category : Constant Voltage/Indoor/Non-Dimmable
Category : Constant Voltage/Indoor/Non-Dimmable
Product Specs
-Price/Performance advantageous flicker-free constant voltage 24V drivers.
– Suitable for Class II luminaires.
3 Years Warranty.
| Product code | Name of the product | Output Power | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899605503 | ELEMENT 30/220-240/24 G2 | 0 – 30 | 24 | 0,95 | 86 | <10 | <3 | IP 20 | 145 | 40 | 26,5 |

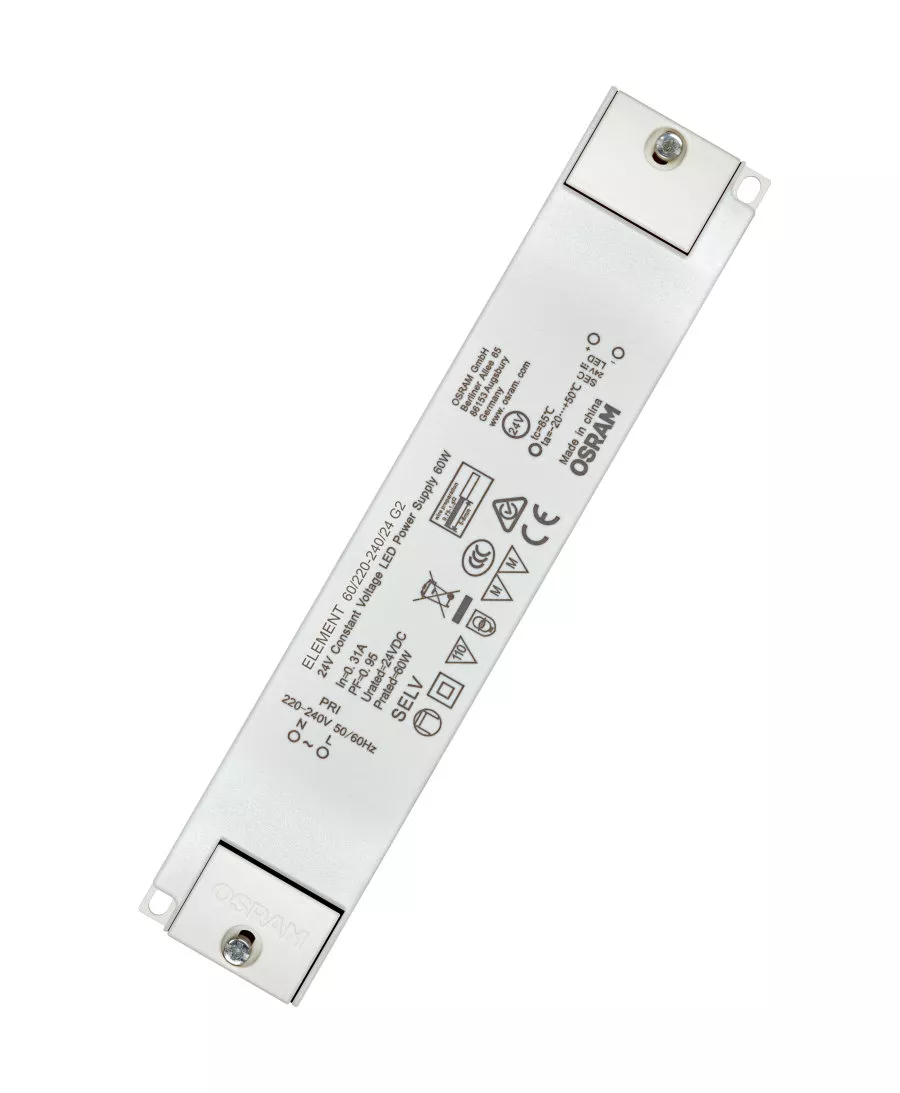

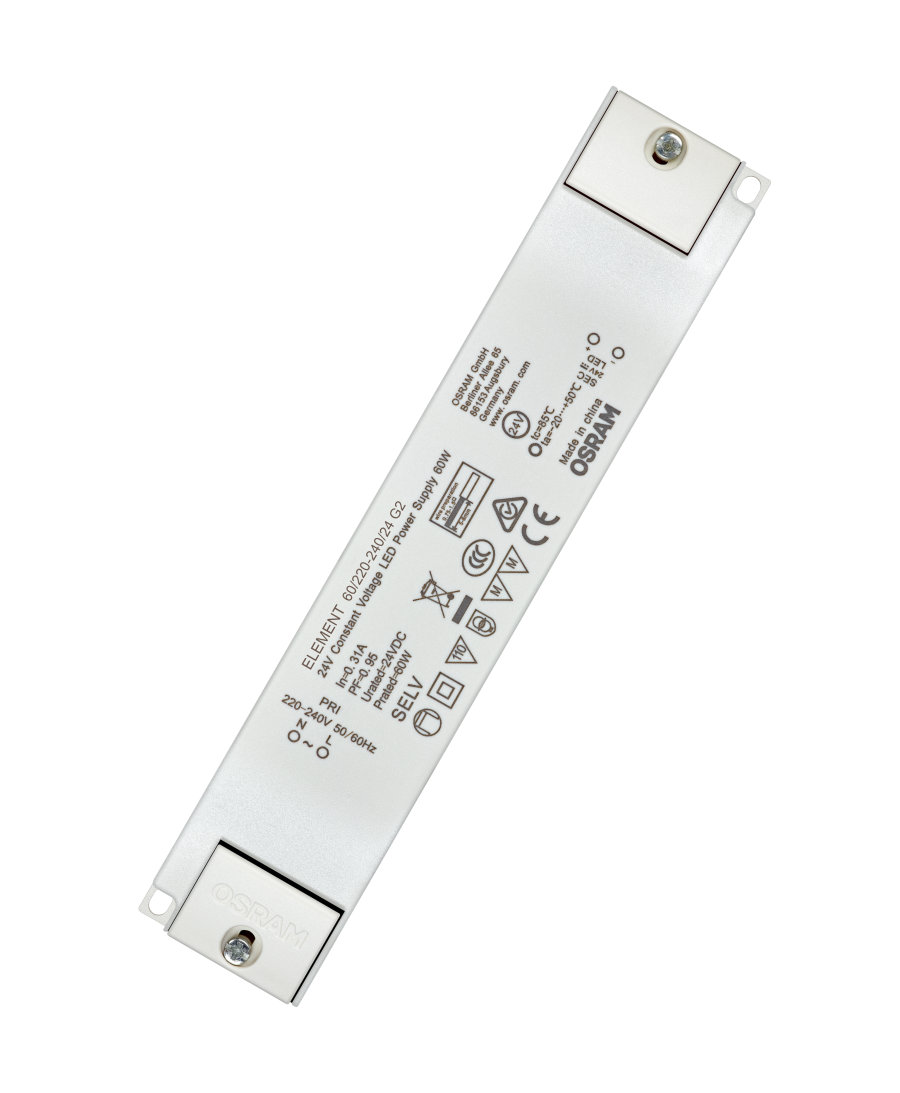

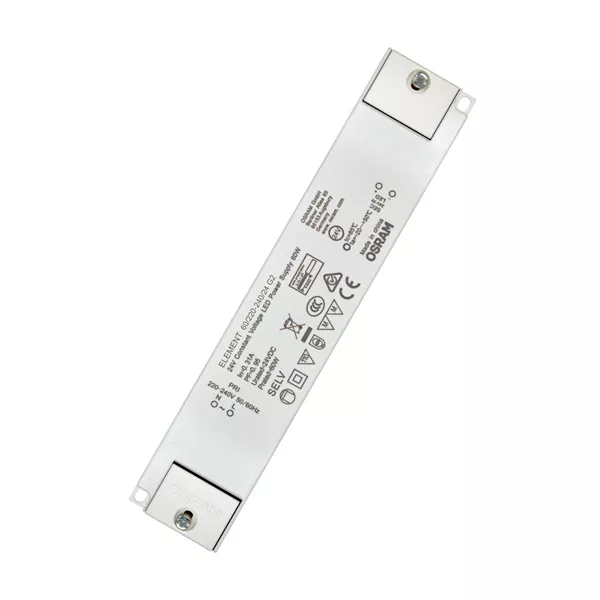

| 4052899605527 | ELEMENT 60/220-240/24 G2 | 0 – 60 | 24 | 0,95 | 88 | <10 | <3 | IP 20 | 200 | 40 | 31 |

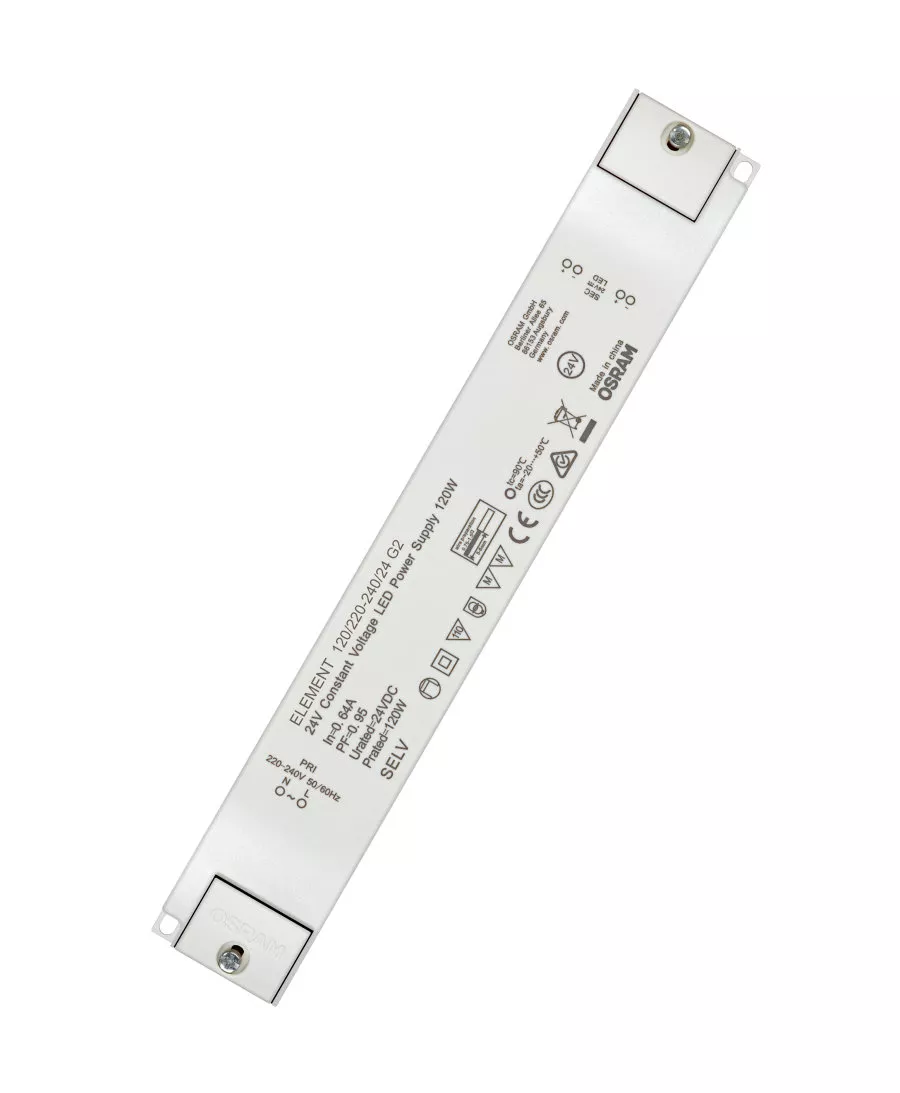

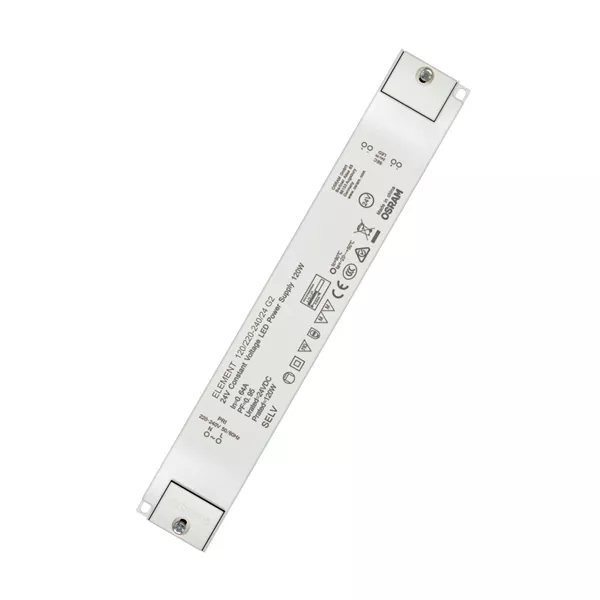

| 4052899605541 | ELEMENT 120/220-240/24 G2 | 0 – 120 | 24 | 0,95 | 89 | <15 | <3 | IP 20 | 260 | 40 | 31 |

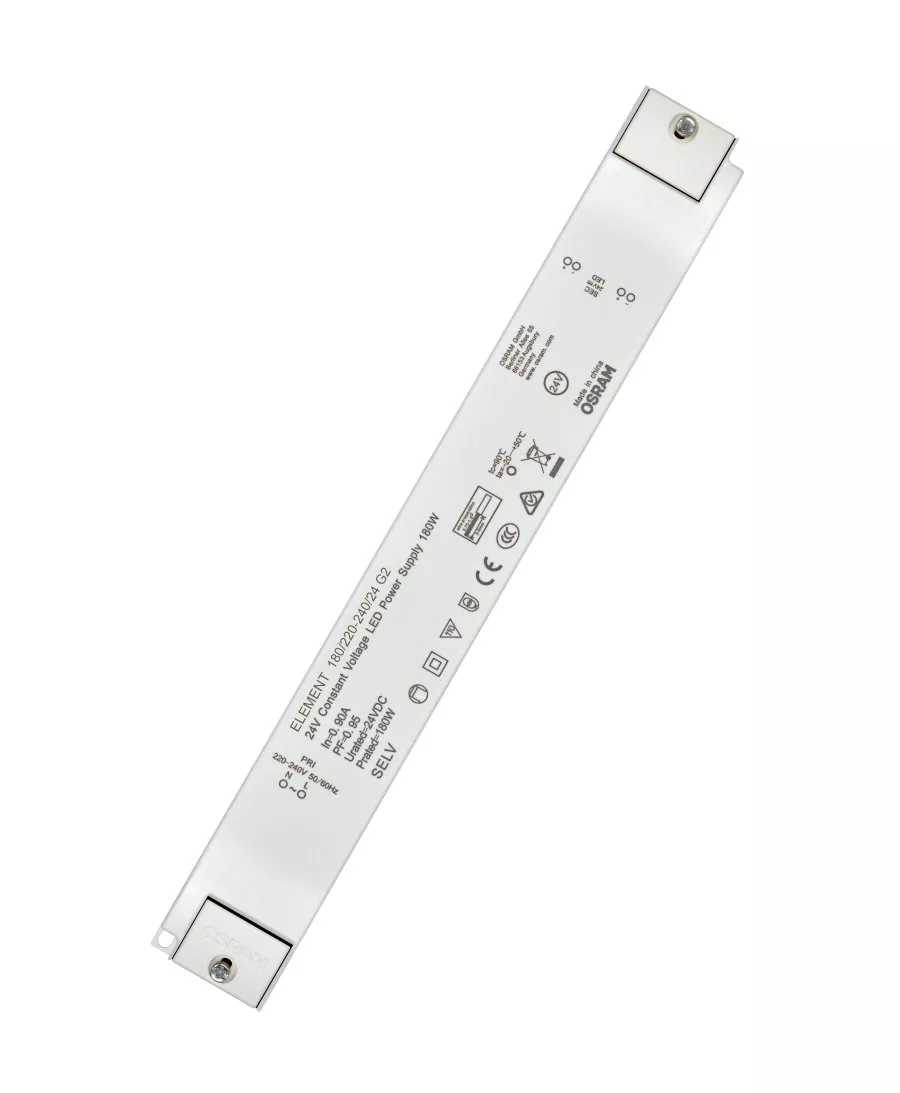

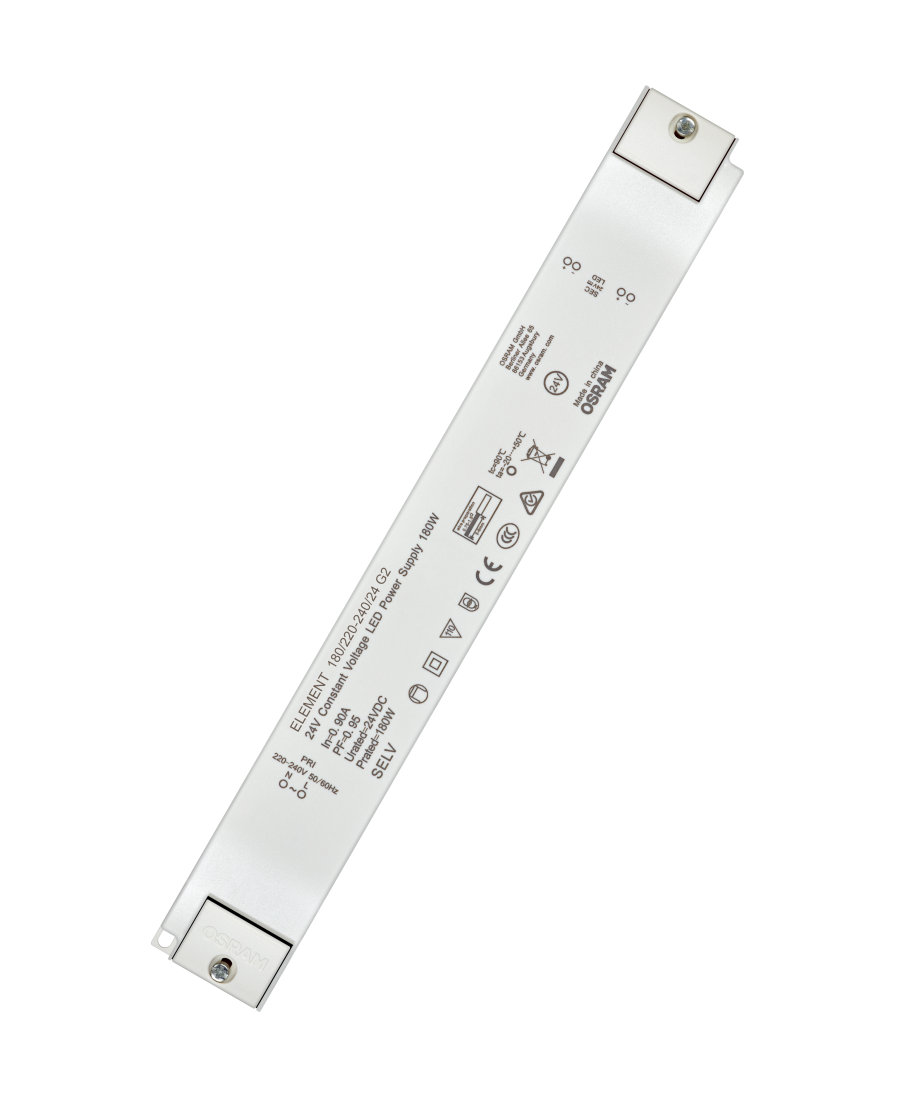

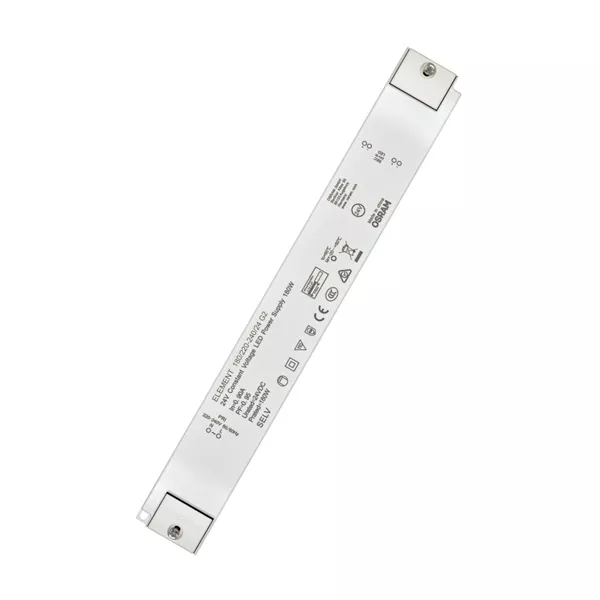

| 4052899605565 | ELEMENT 180/220-240/24 G2 | 0 – 180 | 24 | 0,95 | 91 | <15 | <3 | IP 20 | 300 | 40 | 31 |
