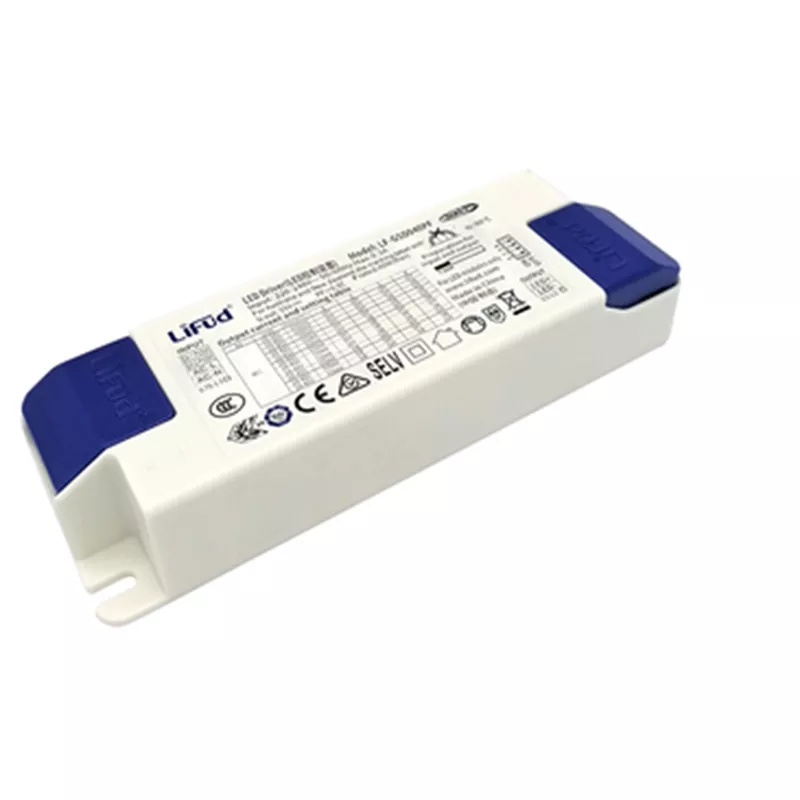

LF-GSDxxxPF Series
Manufacturer : Lifud
Category : Constant Current/Indoor/Dimmable
Category : Constant Current/Indoor/Dimmable
1. DALI Dimming function. Logarithmic or linear DIMing curve can be selected via software
2. PUSH DIM feature
3. Output Current setting with DIP Switch
4. Suitable for Class II luminaires
5. Power consumption less than 0.5W in standby mode
2. PUSH DIM feature
3. Output Current setting with DIP Switch
4. Suitable for Class II luminaires
5. Power consumption less than 0.5W in standby mode
Applications: Plant lighting, indoor office lighting, decorative lighting, commercial lighting, residential lighting
Certifications: ENEC, CE, CB, RCM, CCC
5 Year Warranty
Certifications: ENEC, CE, CB, RCM, CCC
5 Year Warranty
Product features
Model | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc) | Çıkış Akım Aralığı (Output Current Range)(mA) | Verimlilik(Efficiency) | Güç Faktörü (Power Factor) | Ölçüler(Dimension)(L*W*H)(mm) |
LF-GSD012PF | 6 – 13 | 220 – 240 | 20 – 42 | 150 – 400 | ≥ 81.5% | ≥ 0.93 | 122*40*25 |
LF-GSD020PF | 11 – 21 | 220 – 240 | 20 – 42 | 250 – 500 | ≥ 85.5% | ≥ 0.94 | 122*40*25 |
LF-GSD030PF | 17 – 32 | 220 – 240 | 20 – 42 | 400 – 750 | ≥ 85% | ≥ 0.95 | 142*46*28 |
LF-GSD040PF | 23 – 40 | 220 – 240 | 20 – 42 | 550 – 1050 | ≥ 87% | ≥ 0.95 | 142*46*28 |
