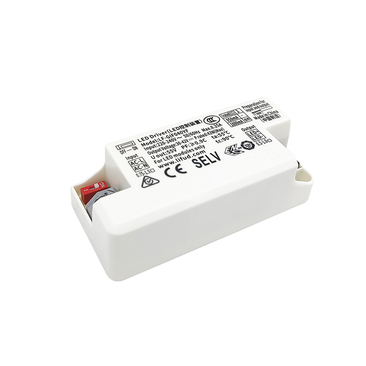

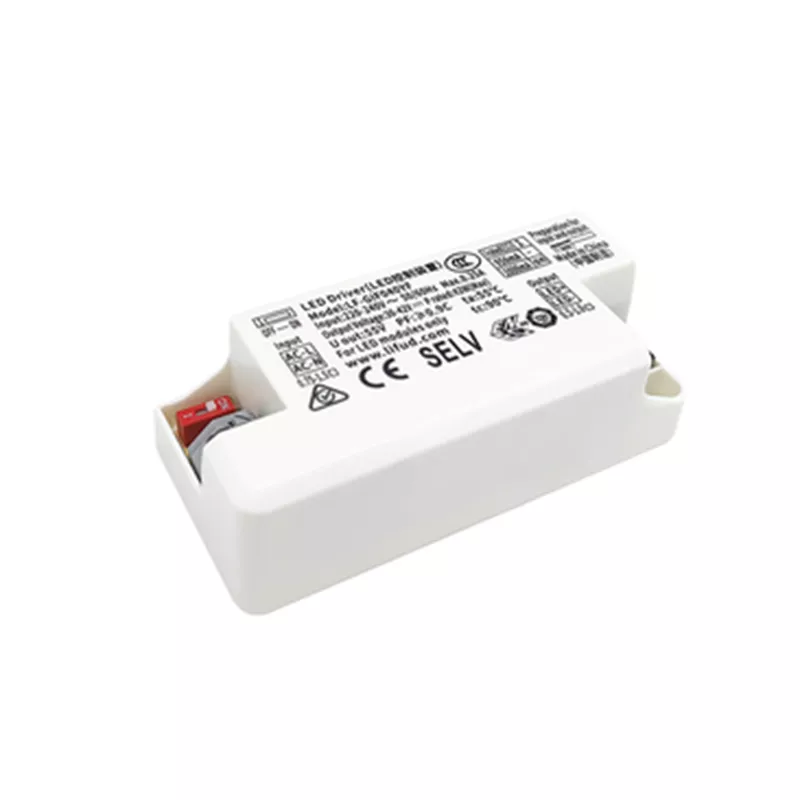

LF-GIFxxxYF/YG Series

Manufacturer : Lifud
Category : Constant Current/Indoor/Not Dimmable

1. Flicker free; High efficiency up to 91%
2. Output current can be adjusted with Dip Switch (YF version)
3. Compact design; Suitable for Class II luminaires.

Application Areas: LED track lighting, down light, interior ceiling lighting, etc.
Certifications: ENEC, CE, CB, RCM, CCC
5 Year Warranty

Product features

Model

Çıkış Gücü (Output Power)(W)

Giriş Gerilim Aralığı (Input Voltage Range)(Vac)

Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc)

Çıkış Akım Seçenekleri (Output Current Options)(mA)

Verimlilik(Efficiency)

Güç Faktörü

(Power Factor)

Ölçüler(Dimension)(L*W*H)(mm)

LF-GIF022YG

15 – 21

220 – 240

30 – 42

350/400/450/500

87% (230 Vac)

0.70 (230 Vac)

73*41*25

LF-GIF022YF

15 – 21

220 – 240

30 – 42

350/400/450/500

88% (230 Vac)

0.90 (230 Vac)

73*41*25

LF-GIF028YF

23 – 29

220 – 240

30 – 42

550/600/650/700

91% (230 Vac)

0.94 (230 Vac)

90*41*27

LF-GIF036YF

32 – 38

220 – 240

30 – 42

750/800/850/900

91% (230 Vac)

0.94 (230 Vac)

90*41*27

LF-GIF040YF

40 – 42

220 – 240

30 – 42

950/1000

91% (230 Vac)

0.94 (230 Vac)

90*41*27
