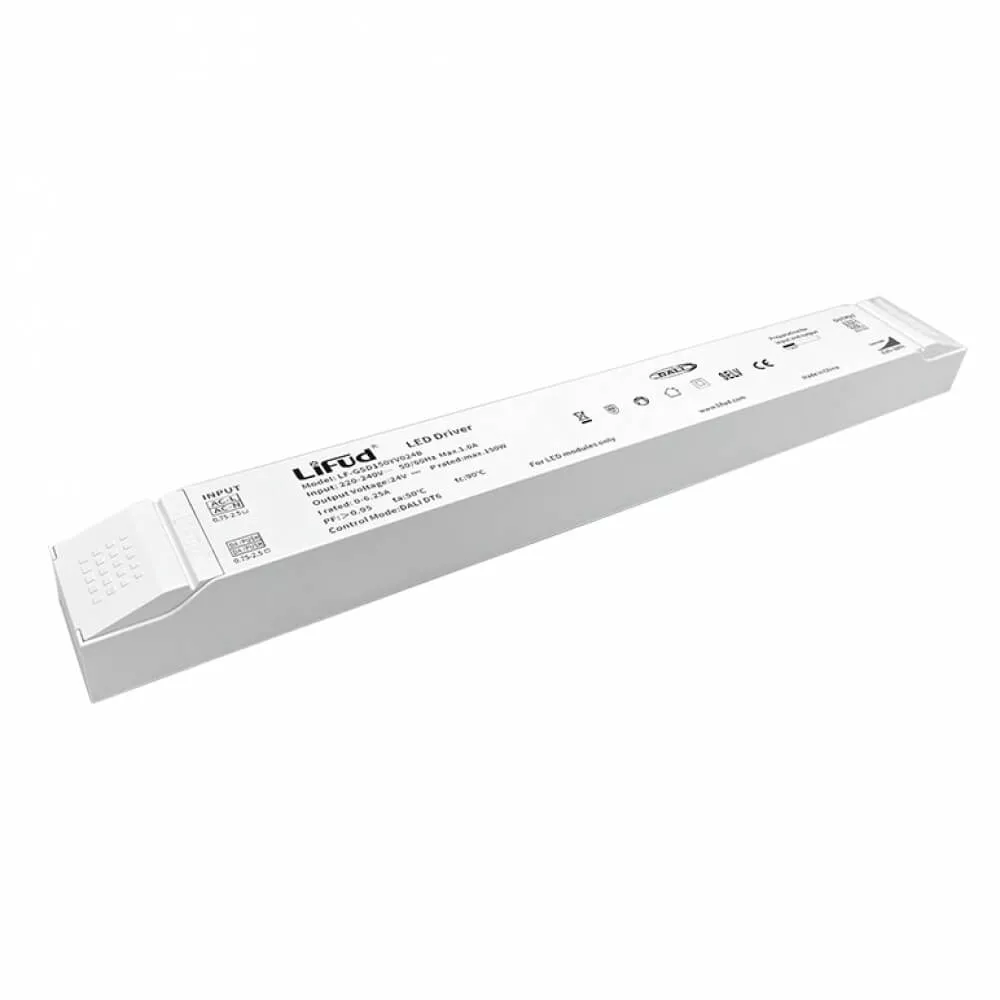

LF-GSDxxxYVxxB Series
Manufacturer : Lifud
Category : Constant Voltage/Indoor/Dimmable
Category : Constant Voltage/Indoor/Dimmable
LF-GSDxxxYVxxB Series
1. DALI/PUSH Dimming
2. Flicker-Free
3. PFC Function
4. Dimming Range: 0%-100%; Dimming Depth: 0.1%
5. Suitable for Class II luminaires
1. DALI/PUSH Dimming
2. Flicker-Free
3. PFC Function
4. Dimming Range: 0%-100%; Dimming Depth: 0.1%
5. Suitable for Class II luminaires
Application Areas: Led Strip, Light Box
Certificates: ENEC, CE, CB, RCM, SAA, CCC
5 Years Warranty
Certificates: ENEC, CE, CB, RCM, SAA, CCC
5 Years Warranty
Product features
Model | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilimi (Output Voltage)(Vdc) | Çıkış Akım Seçenekleri (Output Current Options)(mA) | Verimlilik(Efficiency) | Güç Faktörü (Power Factor) | Ölçüler(Dimension)(L*W*H)(mm) |
LF-GSD075YV024B | 0 – 75 | 220 – 240 | 24 Vdc | 0 – 10 A | 91% (230Vac) | 0.95 (230Vac) | 299.5*42*30.3 |
LF-GSD120YV012B | 0 – 120 | 220 – 240 | 12 Vdc | 0 – 3.125 A | 93% (230Vac) | 0.95 (230Vac) | 360.8*42*30.3 |
LF-GSD150YV024B | 0 – 150 | 220 – 240 | 24 Vdc | 0 – 6.25 A | 93% (230Vac) | 0.95 (230Vac) | 360.8*42*30.3 |
