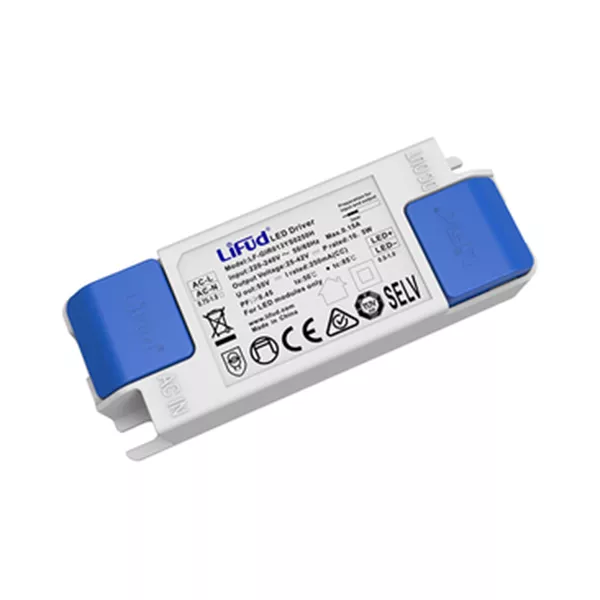

LF-GIRxxxYS Series
Manufacturer : Lifud
Category : Constant Current/Indoor/Not Dimmable
1. Flicker free; PF≥0.5
2. Screwless design greatly save labor cost
3. Suitable for Class II luminaires.
Fields of Application: LED down light, interior ceiling lighting, panel lighting, etc.
Certifications: CE, CB, TUV, RCM, CCC
5 Year Warranty
Product features
| Model | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc) | Çıkış Akım Seçenekleri (Output Current Options)(mA) | Verimlilik(Efficiency) | Güç Faktörü (Power Factor) | Ölçüler(Dimension)(L*W*H)(mm) |
| LF-GIR009YS | 6 – 8 | 220 – 240 | 25 – 42 | 135/160/180/200 | 80% (230 Vac) | 0.50 (230 Vac) | 96*36*24 |
| 7 – 8 | 220 – 240 | 14 – 24 | 300/350 | 76% (230 Vac) | 0.50 (230 Vac) | 96*36*24 | |
| 6 – 8 | 220 – 240 | 8 – 11 | 500/600/700 | 76% (230 Vac) | 0.50 (230 Vac) | 96*36*24 | |
| LF-GIR013YS | 9 – 13 | 220 – 240 | 25 – 42 | 220/250/300 | 80% (230 Vac) | 0.50 (230 Vac) | 96*36*24 |
| 13 | 220 – 240 | 25 – 38 | 350 | 81% (230 Vac) | 0.50 (230 Vac) | 96*36*24 | |
| LF-GIR024YS | 17-23 | 220 – 240 | 25-42 | 400/450/500/550 | 87%(230Vac) | 0.50 (230 Vac) | 96*36*24 |
| 23 | 220 – 240 | 25-39 | 600 | 87%(230Vac) | 0.50 (230 Vac) | 96*36*24 |
