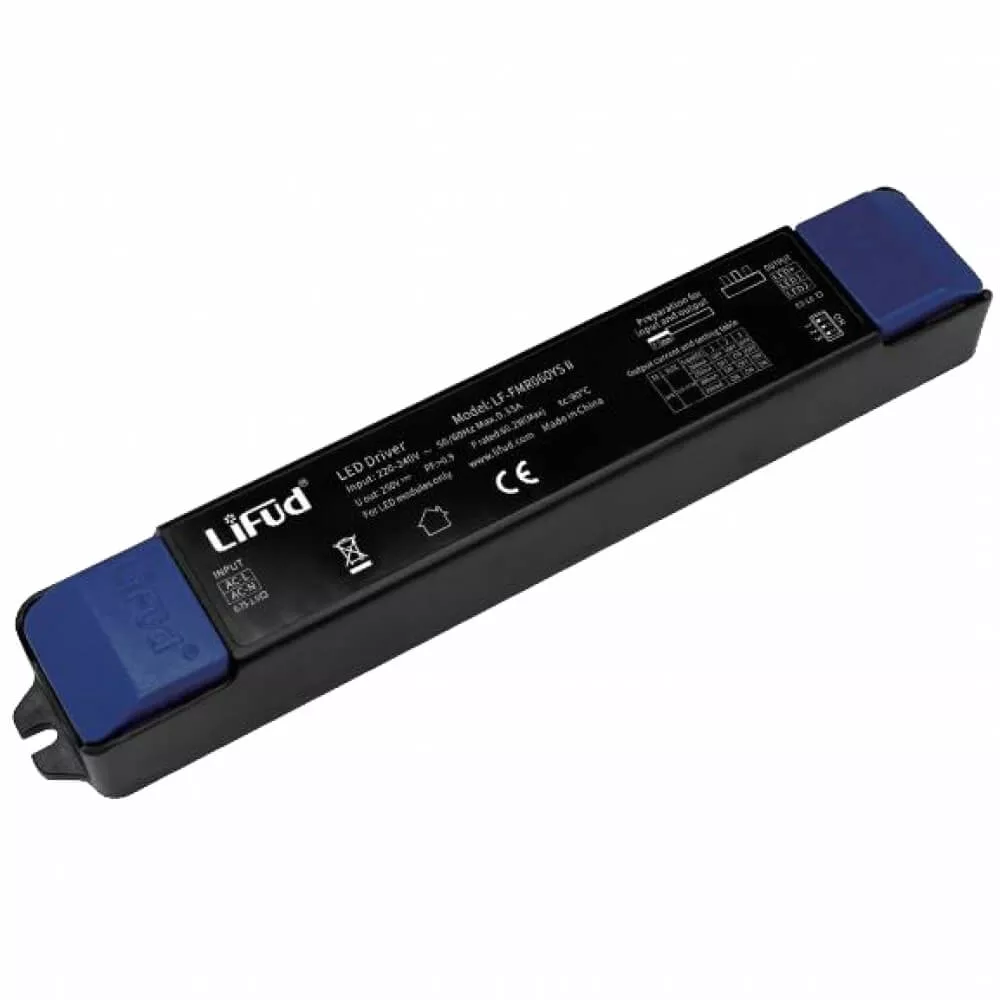

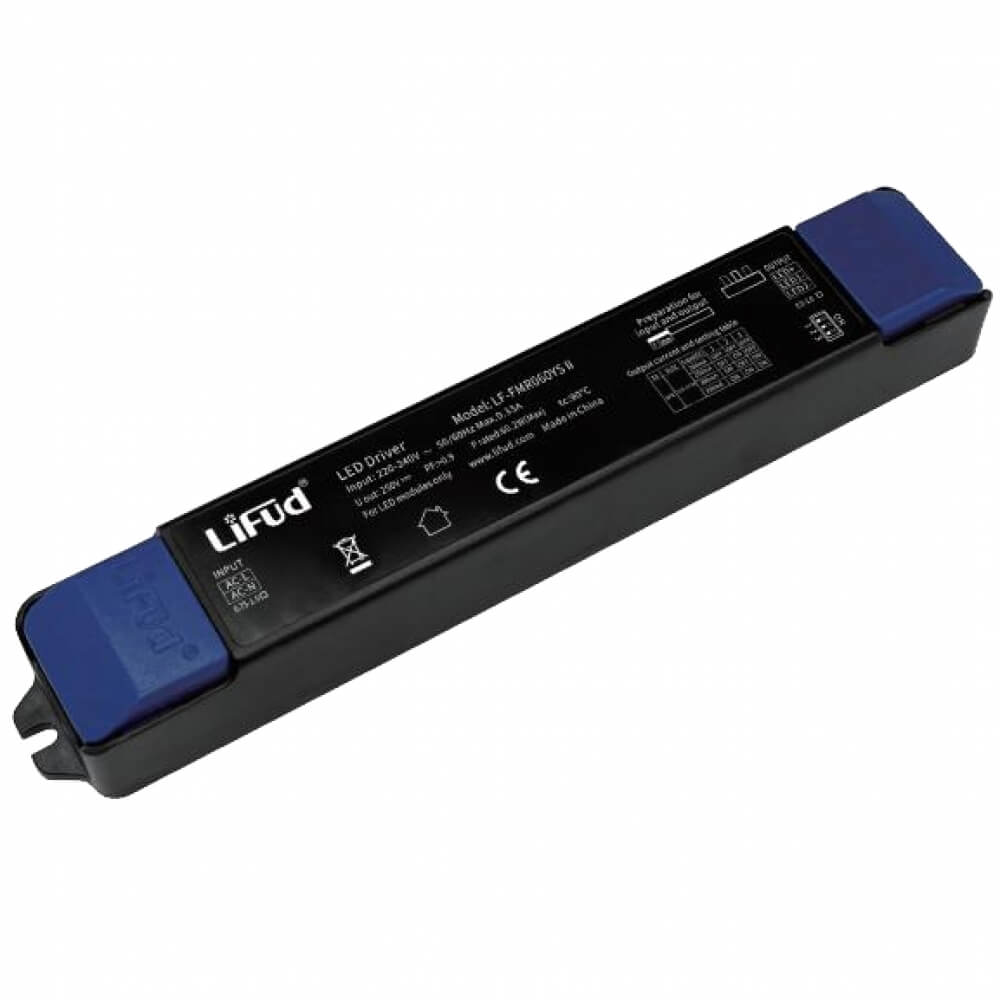

LF-FMRxxxYSII(C1) Series
Manufacturer : Lifud
Category : Constant Current/Indoor/Not Dimmable
LF-FMRxxxYSII Series
1. Flicker free
2. High Efficiency, High Power Factor
3. Plastic Case Design
4. Current Adjustable with Dip-Switch(200-250-300-350mA)
5. Suitable for Class I/II Luminaires
Certifications: ENEC, CE, CB, RCM, CCC
5 Years Warranty
Model | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc) | Çıkış Akım Seçenekleri (Output Current Options)(mA) | Verimlilik(Efficiency)
| Güç Faktörü (Power Factor) | Ölçüler(Dimension)(L*W*H)(mm) |
LF-FMR020YSII(C1) | 5 – 20 | 220 – 240 | 25 – 57 | 200/250/300/350 mA | 85% (230 Vac) | >0.90 (230 Vac) | 142*29,8*20,5 |
LF-FMR040YSII(C1) | 12 – 40 | 220 – 240 | 58 – 114 | 200/250/300/350 mA | 88% (230 Vac) | >0.90 (230 Vac) | 184*30,2*21 |
LF-FMR060YSII(C1) | 23 – 60 | 220 – 240 | 115 – 172 | 200/250/300/350 mA | 90% (230 Vac) | >0.90 (230 Vac) | 207*30,2*22,8 |
