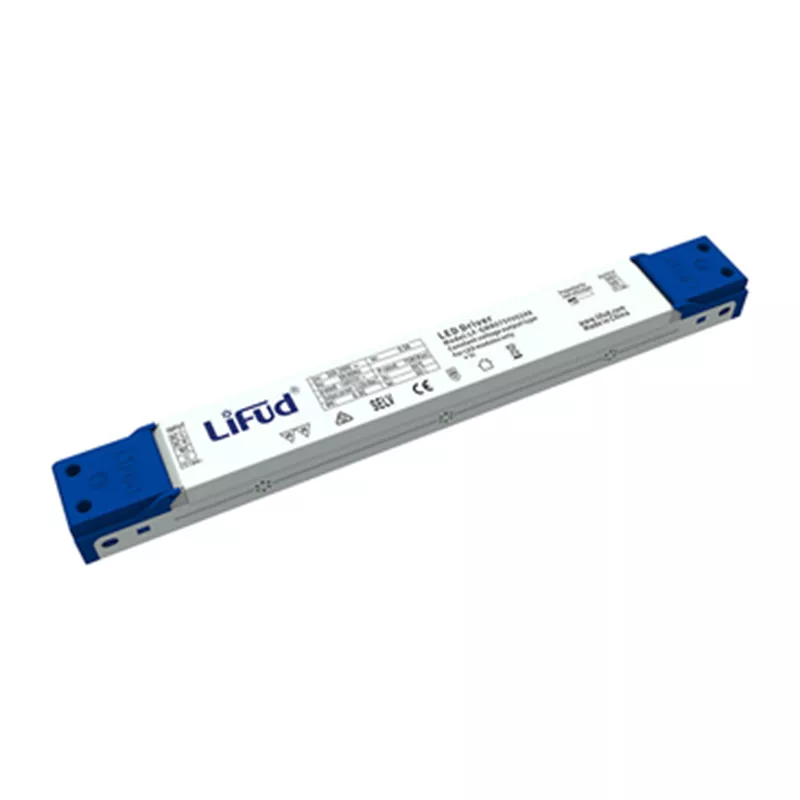

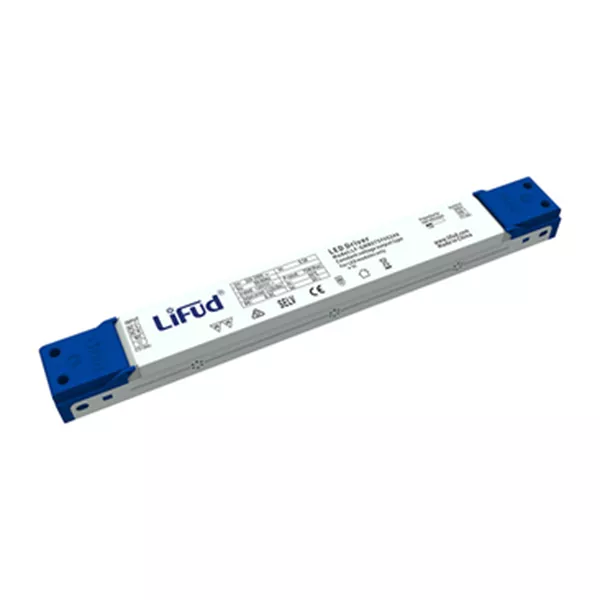

LF-GMRxxxYV Series
Manufacturer : Lifud
Category : Constant Voltage/Indoor/Non-Dimmable
Category : Constant Voltage/Indoor/Non-Dimmable
1. Flicker free
2. Ease of assembly thanks to its slim-thin structure
3. Long lasting
2. Ease of assembly thanks to its slim-thin structure
3. Long lasting
Application Areas: Led Strip Lighting, Advertising Boards, Linear Lighting, etc.
Certifications: CE, RCM, CCC
5 Year Warranty
Certifications: CE, RCM, CCC
5 Year Warranty
Product features

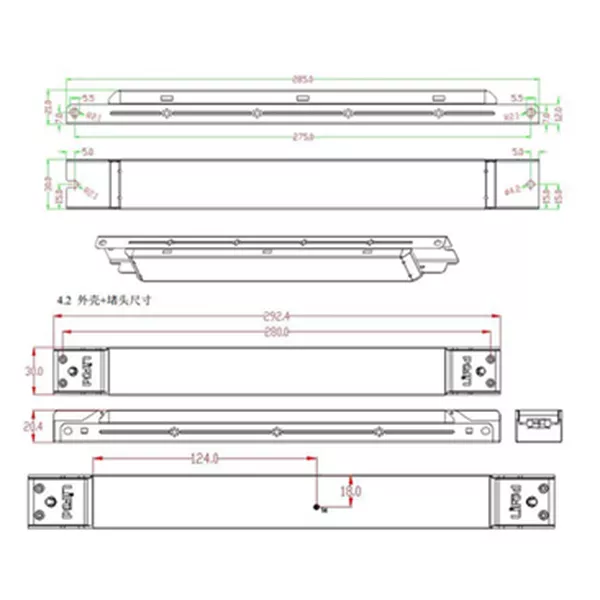

Model+A3:H8A3:H15A3:H9 | Çıkış Gücü (Output Power)(W) | Giriş Gerilim Aralığı (Input Voltage Range)(Vac) | Çıkış Gerilim Aralığı (Output Voltage Range)(Vdc) | Çıkış Akım Aralığı (Output Current Range)(mA) | Verimlilik(Efficiency) | Güç Faktörü (Power Factor) | Ölçüler(Dimension)(L*W*H)(mm) |
LF-GMR030YV024A | 30 | 220-240 | 24 | 0 – 1.25 | 87%(230Vac) | 0.97(230Vac) | 245*30*21 |
LF-GMR045YV012A | 45 | 220-240 | 12 | 0 – 3.75 | 88%(230Vac) | 0.97(230Vac) | 245*30*21 |
LF-GMR045YV024A | 45 | 220-240 | 24 | 0 – 1.875 | 88%(230Vac) | 0.97(230Vac) | 245*30*21 |
LF-GMR060YV024A | 60 | 220-240 | 24 | 0 – 2.5 | 88.5%(230Vac) | 0.97(230Vac) | 285*30*21 |
LF-GMR075YV012A | 75 | 220-240 | 12 | 0 – 6.25 | 88.5%(230Vac) | 0.97(230Vac) | 285*30*21 |
LF-GMR075YV024A | 75 | 220-240 | 24 | 0 – 3.125 | 88.5%(230Vac) | 0.97(230Vac) | 285*30*21 |
